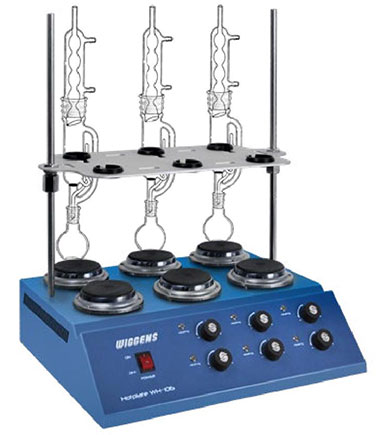

六位加热板
WH-106 将传统的单列六位加热台设计为双列六位 , 节省操作台面 , 两个相邻的加热板之间的距离都是
55mm，上夹板的直径为 39mm( 满足 DIN 44548 要求 )。
加热板直径为 85mm, 设备原产德国 , 坚固耐用不必保养 , 每个加热板都有独立开关。基于操作的安全性 ,
在每一个加热板周围都有一个防溅漏保护环 , 避免溅漏的液体与电子零件的接触。
> 加热板：德国产嵌入式电阻加热器 , 直径 85 mm, 坚固耐用
> 加热板间距：55mm
> 冷凝管支架开孔直径：41.5mm
> 板面温度：最高温可达 425℃
> 一对一独立加热控制旋钮
> 专利冷凝管固定铝盘 , 不需夹具来固定冷凝管
> 外壳材质：不锈钢烤漆
> 电源：220V/50Hz, 加热功率 : 6 x 450W
> 主机尺寸（长 X 宽 X 高）：475X395X160mm
> 带支杆（高）：615mm
索氏提取器套装
推荐套装一，适合六联加热板WH-106
|
推荐套装一，适合六联加热板WH-106 |
|
尺寸 |
烧瓶容积(mL) |
提取器上部磨口 |
提取器下部磨口 |
整套订货号 |
冷凝器订货号 |
提取器订货号 |
抽提套管订货号 |
烧瓶订货号 |
|
A |
125 |
34 / 45 |
24 / 40 |
189100-01 |
189102-01 |
189101-01 |
189103-01 |
189105-02 |
|
A |
125 |
34 / 45 |
24 / 40 |
189100-02 |
189102-01 |
189101-01 |
189103-02 |
189105-02 |
|
B |
250 |
45 / 50 |
24 / 40 |
189100-03 |
189102-02 |
189101-02 |
189103-03 |
189105-03 |
|
B |
250 |
45 / 50 |
24 / 40 |
189100-04 |
189102-02 |
189101-02 |
189103-04 |
189105-03 |
|
B |
300 |
45 / 50 |
24 / 40 |
189100-05 |
189102-02 |
189101-02 |
189103-03 |
189105-04 |
|
B |
300 |
45 / 50 |
24 / 40 |
189100-06 |
189102-02 |
189101-02 |
189103-04 |
189105-04 |
|
D |
500 |
55 / 50 |
24 / 40 |
189100-07 |
189102-03 |
189101-04 |
189103-05 |
189105-05 |
|
D |
500 |
55 / 50 |
24 / 40 |
189100-08 |
189102-03 |
189101-04 |
189103-06 |
189105-05 |
推荐套装二，适合六联平底加热套
|
A |
100 |
34 / 45 |
24 / 40 |
189100-11 |
189102-01 |
189101-01 |
189103-01 |
189105-01 |
|
A |
100 |
34 / 45 |
24 / 40 |
189100-12 |
189102-01 |
189101-01 |
189103-02 |
189105-01 |
|
A |
125 |
34 / 45 |
24 / 40 |
189100-13 |
189102-01 |
189101-01 |
189103-01 |
189105-02 |
|
A |
125 |
34 / 45 |
24 / 40 |
189100-14 |
189102-01 |
189101-01 |
189103-02 |
189105-02 |
|
B |
250 |
45 / 50 |
24 / 40 |
189100-15 |
189102-02 |
189101-02 |
189103-03 |
189105-03 |
|
B |
250 |
45 / 50 |
24 / 40 |
189100-16 |
189102-02 |
189101-02 |
189103-04 |
189105-03 |
|
D |
300 |
55 / 50 |
24 / 40 |
189100-17 |
189102-03 |
189101-04 |
189103-05 |
189105-04 |
|
D |
300 |
55 / 50 |
24 / 40 |
189100-18 |
189102-03 |
189101-04 |
189103-06 |
189105-04 |
推荐套装三，适合六联圆底加热套
|
A |
100 |
34 / 45 |
24 / 40 |
189100-21 |
189102-01 |
189101-01 |
189103-01 |
189104-01 |
|
A |
100 |
34 / 45 |
24 / 40 |
189100-22 |
189102-01 |
189101-01 |
189103-02 |
189104-01 |
|
A |
125 |
34 / 45 |
24 / 40 |
189100-23 |
189102-01 |
189101-01 |
189103-01 |
189104-02 |
|
A |
125 |
34 / 45 |
24 / 40 |
189100-24 |
189102-01 |
189101-01 |
189103-02 |
189104-02 |
|
B |
250 |
45 / 50 |
24 / 40 |
189100-25 |
189102-02 |
189101-02 |
189103-03 |
189104-03 |
|
B |
250 |
45 / 50 |
24 / 40 |
189100-26 |
189102-02 |
189101-02 |
189103-04 |
189104-03 |
|
D |
300 |
55 / 50 |
24 / 40 |
189100-27 |
189102-03 |
189101-04 |
189103-05 |
189104-04 |
|
D |
300 |
55 / 50 |
24 / 40 |
189100-28 |
189102-03 |
189101-04 |
189103-06 |
189104-04 |
推荐套装四，适合三联平底加热套
|
D |
500 |
55 / 50 |
24 / 40 |
189100-31 |
189102-03 |
189101-04 |
189103-05 |
189105-05 |
|
D |
500 |
55 / 50 |
24 / 40 |
189100-32 |
189102-03 |
189101-04 |
189103-06 |
189105-05 |
推荐套装五，适合三联圆底加热套
|
D |
500 |
55 / 50 |
24 / 40 |
189100-41 |
189102-03 |
189101-04 |
189103-05 |
189104-05 |
|
D |
500 |
55 / 50 |
24 / 40 |
189100-42 |
189102-03 |
189101-04 |
189103-06 |
189104-05 |
|
D |
1000 |
55 / 50 |
24 / 40 |
189100-43 |
189102-03 |
189101-04 |
189103-05 |
189104-06 |
|
D |
1000 |
55 / 50 |
24 / 40 |
189100-44 |
189102-03 |
189101-04 |
189103-06 |
189104-06
|
